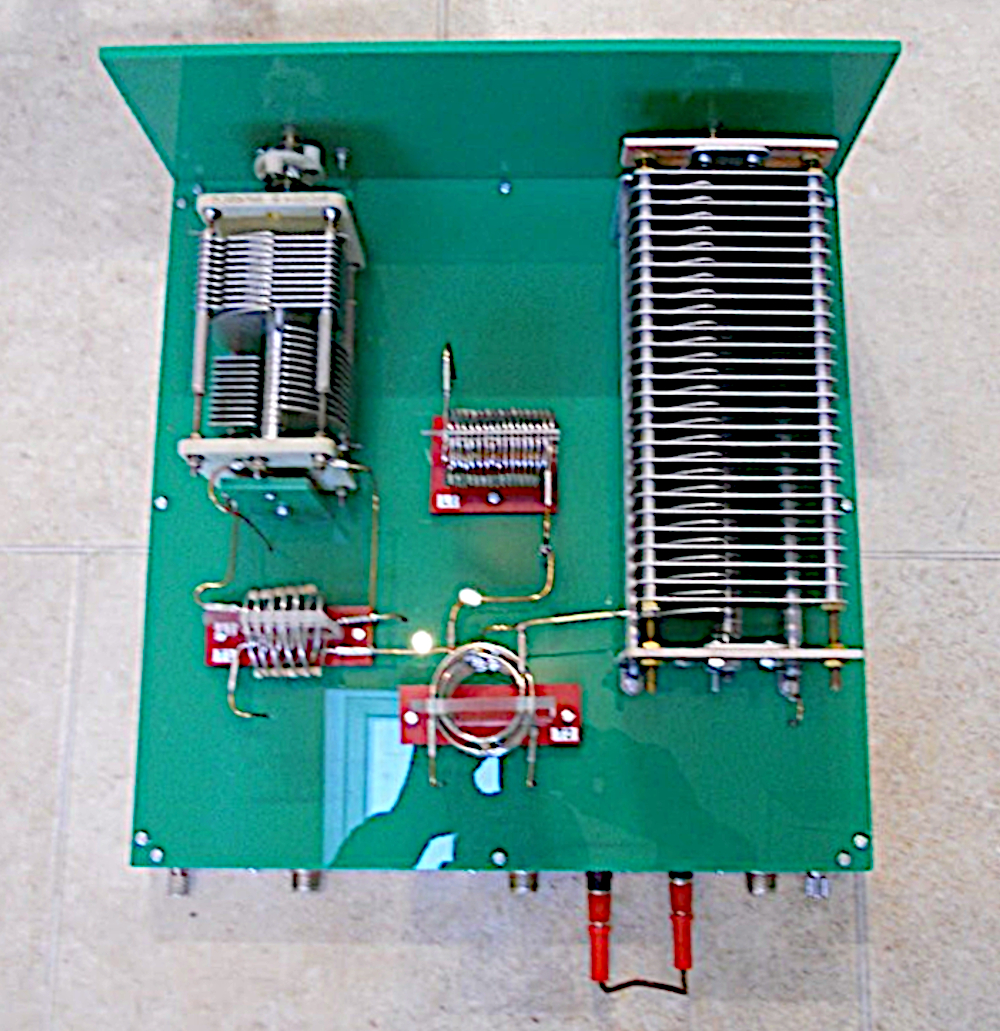

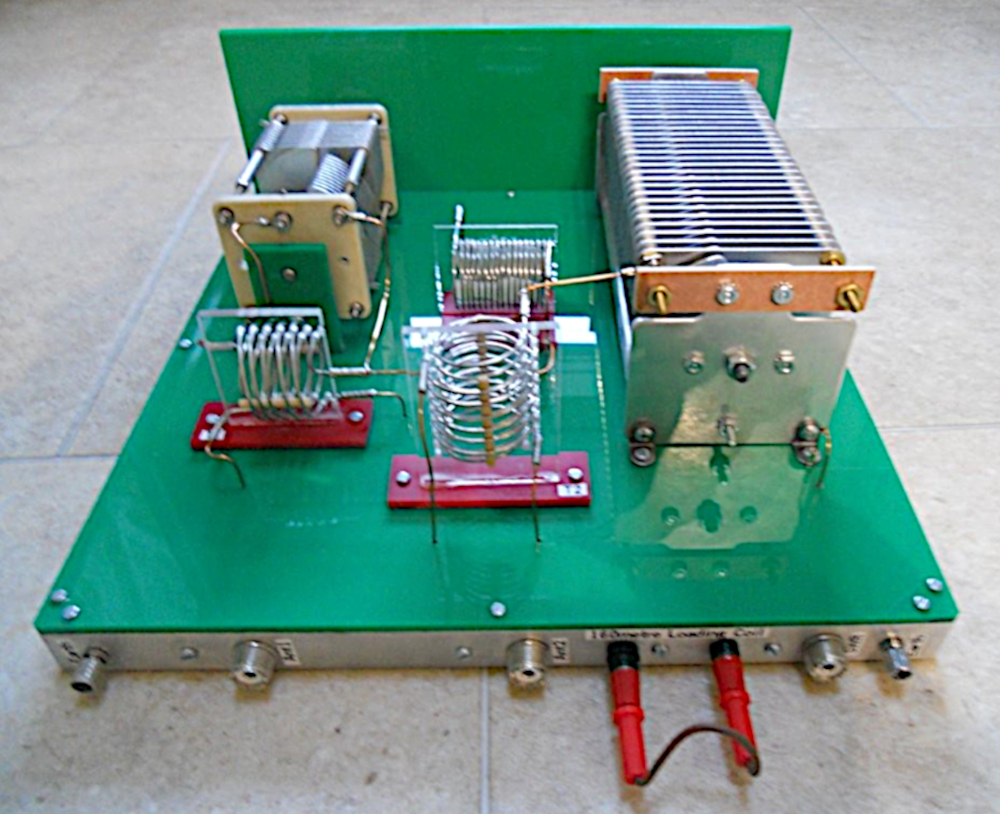

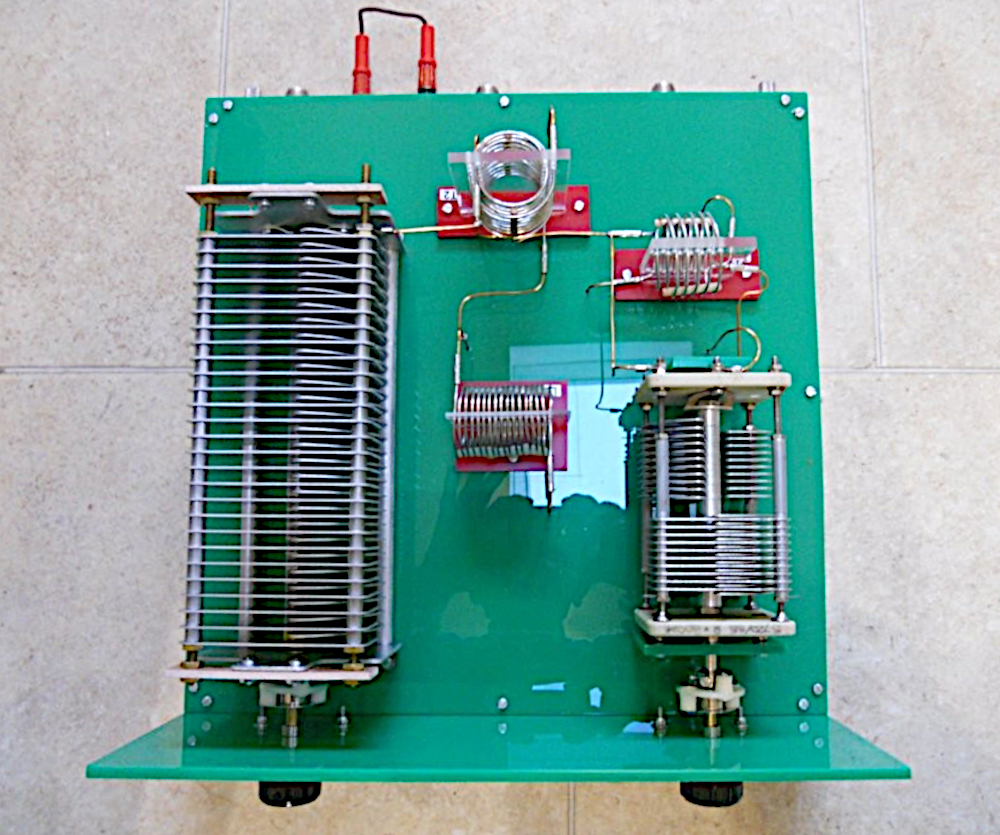

100 Watt KW E-Zee ATU for 160 to 10m
I suspect that some people will think that this ATU is 'out of date', but there are some good reports about it.
I built this piece of kit for my first 'Construction Competition', shortly after joining the club. ('Construction Competitions' - ah, now those were the days!). At the time, I did not have a LRC Meter so was not able to check the various component values. However, I have done this now (test frequency = 200kHz) and some of them are listed below, but the components are joined together which will probably affect their original values:
L1 - 160m Loading Coil
Impedance = 0.49uH
Transformer (T1)
Inner Coil (Primary) = 0.69 pF
Outer Coil (Secondary) = 1.05 pF
Transformer (T2)
Inner Coil (Primary) = 1.42 pF
Outer Coil (Secondary) = 1.49 pF
Variable Capacitor (C1)
4.6 kV RMS
Max. = 434 pF
Min. = 36 pF
Two-Gang Split-Stator Variable Capacitor (C2)
2 x 250pF, 3.18kV RMS

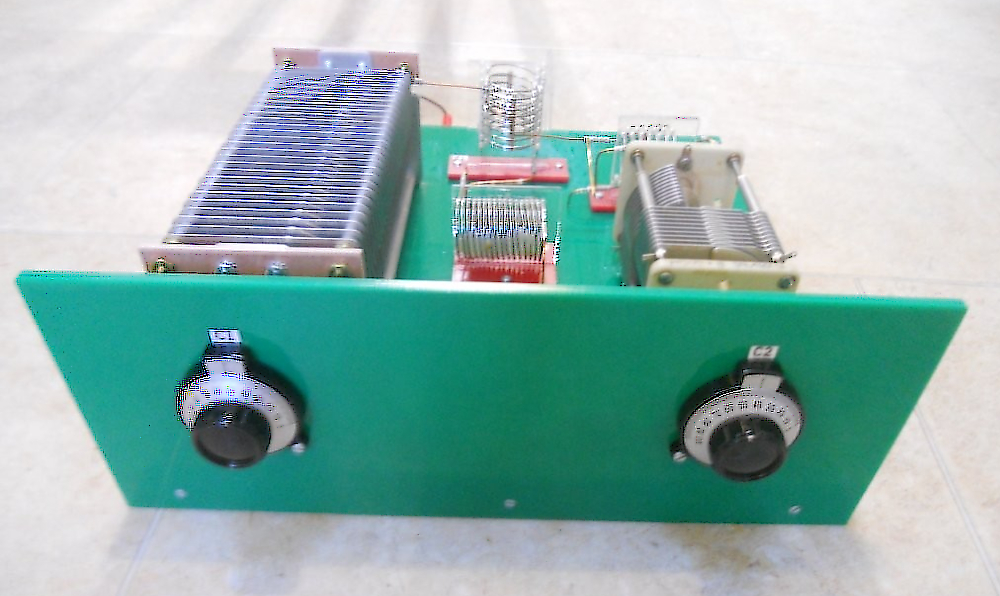

I believe the slow-motion drives are still available
Mutual Inductance for T1 and T2, using Inductance Difference Method
M = {{L(Aiding) minus L(Opposing)} / 4 Henries
I tried this method but the results were unreliable.
Similar variable capacitors are still available from the following company, priced at about US $150.0 each (Ex Stock):
Palstar Inc
9676 N. Looney Road
Piqua
OH 45356
USA
Phone: 937-773-6255
